de.lmu.ifi.dbs.elki.visualization.visualizers

Interface VisFactory

All Superinterfaces:

ResultProcessor

All Known Implementing Classes:

AbstractVisFactory, AxisReorderVisualization, AxisVisibilityVisualization, AxisVisualization, BubbleVisualization, CircleSegmentsVisualizer, ClusterHullVisualization, ClusterMeanVisualization, ClusterOrderVisualization, ClusterOutlineVisualization, ClusterParallelMeanVisualization, ColoredHistogramVisualizer, COPVectorVisualization, DensityEstimationOverlay, DistanceFunctionVisualization, EMClusterVisualization, EvaluationVisualization, HistogramVisualization, KeyVisualization, LabelVisualization, LineVisualization, MarkerVisualization, MoveObjectsToolVisualization, OPTICSClusterVisualization, OPTICSPlotCutVisualization, OPTICSPlotSelectionVisualization, OPTICSPlotVisualizer, OPTICSSteepAreaVisualization, ParallelAxisVisualization, PixmapVisualizer, PolygonVisualization, ReferencePointsVisualization, RTreeParallelVisualization, SelectionAxisRangeVisualization, SelectionConvexHullVisualization, SelectionCubeVisualization, SelectionDotVisualization, SelectionLineVisualization, SelectionToolAxisRangeVisualization, SelectionToolCubeVisualization, SelectionToolDotVisualization, SelectionToolLineVisualization, SettingsVisualization, SimilarityMatrixVisualizer, ToolBox2DVisualization, TooltipScoreVisualization, TooltipStringVisualization, TreeMBRVisualization, TreeSphereVisualization, VoronoiVisualization, XYCurveVisualization

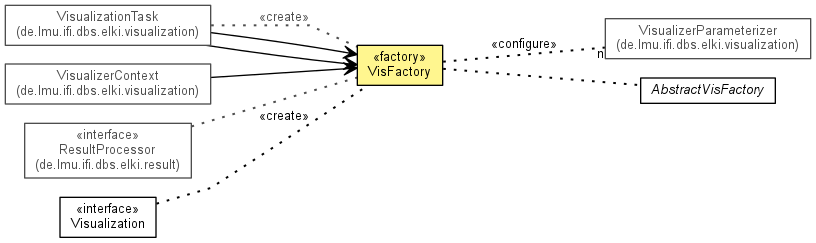

public interface VisFactory
extends ResultProcessor

Defines the requirements for a visualizer.
Note: Any implementation is supposed to provide a constructor without parameters (default constructor) to be used for parameterization.

Author:

Remigius Wojdanowski

Method Summary

Modifier and Type	Method and Description
Visualization	makeVisualization(VisualizationTask task) Produce a visualization instance for the given task
Visualization	makeVisualizationOrThumbnail(VisualizationTask task) Produce a visualization instance for the given task that may use thumbnails
void	processNewResult(HierarchicalResult baseResult, Result newResult) Add visualizers for the given result (tree) to the context.

Method Detail

processNewResult

void processNewResult(HierarchicalResult baseResult,
                      Result newResult)

Add visualizers for the given result (tree) to the context.

Specified by:

processNewResult in interface ResultProcessor

Parameters:

baseResult - Context to work with

newResult - Result to process

makeVisualization

Visualization makeVisualization(VisualizationTask task)

Produce a visualization instance for the given task

Parameters:

task - Visualization task

Returns:

Visualization

makeVisualizationOrThumbnail

Visualization makeVisualizationOrThumbnail(VisualizationTask task)

Produce a visualization instance for the given task that may use thumbnails

Parameters:

task - Visualization task

Returns:

Visualization
